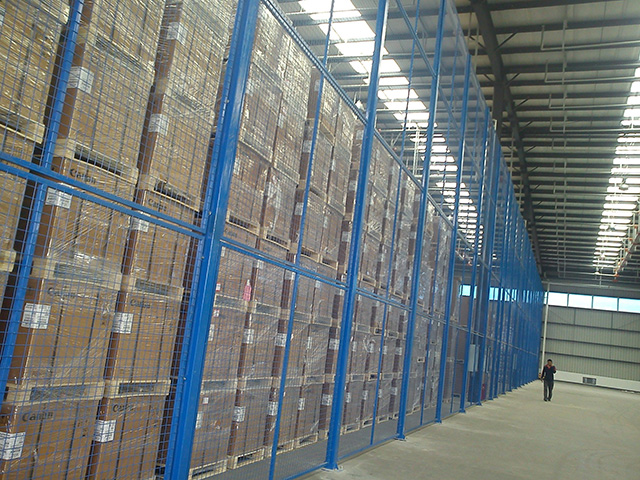

Warehouse Separation Net

　　The warehouse separation net, formed by welding the rhombic meshes and the woven square meshes with the square tubes (simulating the hedgerow), is an emerging isolation net wall. In case of ensuring that the intensity and protection performance are not changed, the warehouse separation net is closer to people's aesthetic feelings, and is decorative with fine and smooth plastic layer and bright color. This product has the advantages of novel, beautiful and decent design, compact and firm structure, combination flexibility, installation and removal convenience, management simplicity, etc. The movable metal net wall which can be combined at will is particularly suitable for the space planning and isolation in the steel structure workshop building, the standard workshop building and the workshop warehouse.

　　2 Specifications

　　Edit

　　I. Mesh

　　Steel wire: 3.2 galvanized wire

　　Four side baffles: formed by 1.5 cold roller sheets

　　Warehouse separation net

　　Warehouse separation net (8 pieces)

　　Hole pitch: 4.15*4.15

　　Cylinder: circular pipe with diameter of 60*1.2

　　Surface treatment: spraying

　　Color: mainly wooden gray

　　Mesh width: 1.61 m

　　Mesh height: mainly 2.2 m,  2.52 m and 3 m

　　Mesh color: grass green, yellow, white, blue, etc.

　　II. Door:

　　1. Single sliding door: three sides are reinforced on the basis of one original mesh. The additional materials are as follows:

　　Upper rail: one 50×30×1.5 square tube + one aluminum alloy rail, 3 m long

　　Lower rail: one 30×45×1.5 rail formed by cold rolled sheet, 1.5 m long

　　Lock catch: 1; pulley: 2

　　2. Double sliding doors: three sides are reinforced on the basis of two original meshes. The additional materials are as follows:

　　Upper rail: one 50×30×1.5 square tube + one aluminum alloy rail, 6 m long

　　Lower rail: two 30×45×1.5 rails formed by cold rolled sheets, 1.5 m long

　　Lock catch: 1; pulley: 4; latch: 1

　　3. Advantages

　　1. The grid structure of the warehouse separation net is simple, beautiful and practical;

　　2. The warehouse separation net is convenient to transport, and its installation is not limited by togographic irregularity;

　　3. The warehouse separation net has particular adaptability to mountains, sloping fields and bending zones;

　　4. The warehouse separation net is middle or slightly low in price and is suitable for large-area use.
