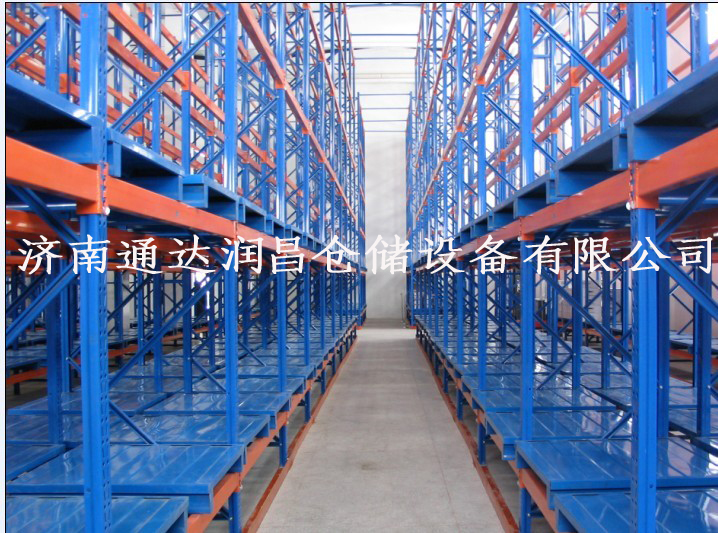

Beam Type Rack

　　The beam type rack is a professional warehouse rack for storing and taking the pallet cargo (each pallet is a goods location, so the beam type rack is also called pallet rack); the beam type rack is composed of uprights (upright columns) and beams. The beam type rack (pallet rack) has a simple, safe and reliable structure. The beam type racks with different specifications are provided for selection according to the actual use conditions such as pallet bearing requirements, pallet size, actual warehouse space and actual forklift hoisting height.

　　Structure

　　A. Upright: the beam type rack (pallet rack) is formed by connecting two upright columns, the cross strut and the inclined strut through the nylon self-locking bolt. The combined structure effectively prevents the rack from destabilization after the bolt is loosened. Two rows of diamond holes are punched on the upright column, and the hole pitch is 75 mm, so the beam is hanged on the upright column and can be freely adjusted up and down at 75 mm. The section of the upright column is composed of 11 to 13 surfaces so that the inertia moment is large, the bearing capacity is strong and the shock resistance is high. The upright column of the beam type rack adopts the first automatic punching and then cold roll forming technology, avoiding the cracking and failure of the upright column caused by the stress concentration of the upright column.

　　B. Beam: the beam type rack (pallet rack) is composed of two column clips and the beam which are welded together, and the beam is welded by using two special double-C welded beams, so that the thicknesses for the upper and lower surfaces of the beam are doubled. This structure takes full advantage of the load resistance capacity of the material based on the design theory of the steel structure and has the characteristics of light weight, strong bearing capacity and low cost. The specially designed safety pin with the lug is provided when the beam is connected with the upright column. The safety pin with the lug cannot be easily pulled out and can ensure that the beam cannot fall off after being impacted by the external force.

　　Characteristics

　　1. The beam type rack has a simple, safe and reliable structure, and can be combined and adjusted freely, and the warehousing and delivery are not limited by the sequence of articles. The beam type rack is widely applied to the warehousing mode using the pallet for storage and the forklift for storage and delivery.

　　2. The upright of the beam type rack is formed by connecting the upright column, the cross strut and the inclined strut through the bolt. The upright is spliced with the double C-shaped welded beams to form the rack frame, the safety pin is used for fixing, and the structure is simple and reliable. Each layer can be freely adjusted up and down at the step pitch of 75 mm.

　　3. The layer bearing requirements of the beam type rack can be determined according to the specifications of the upright column and the beam, the beam type rack has the characteristics of large inertia moment, strong layer bearing capacity and high impact resistance, and the maximum layer bearing capacity can reach 5000 kg per layer under the relative design.

　　4. The height of the single upright column for the beam type rack can be up to 12 m, the moldability of the pallet rack is high, and the mold rack, the multi-tier rack, the stereoscopic warehouse rack, etc. can be erected on the basis of the pallet rack to form the special oil drum rack, etc.

　　5. The beam type rack can effectively increase the warehousing height, improves the space service rate of the warehouse, and is suitable for storing all kinds of goods.

　　6. The appearance of the beam type rack is safer to prevent the forklift from colliding, and the protective legs and the anti-collision rods for the upright column can be added. To ensure safer layer bearing, the beam block, the veneer, the mesh span beam and other ancillary facilities can be arranged on the beam.

　　Application of beam type rack

　　The effect of the beam type rack is very obvious in the application process of warehousing racks. Its use value is mainly reflected in operation, and the special operation can be performed in combination with the width direction of the warehouse or the special structure, etc. It can indicate that the beam type rack can be more convenient for the customers to store and deliver the goods in the operation process, and the universality is stronger. In general, the use value of Shanghai Youteng beam type racks has been truly reflected in a lot of enterprises and has been recognized by the customers. Its flexibility and versatility ensure that the economic benefits of the enterprises have been effectively improved to some extent, and it has been widely used in the high position warehouses.
